ROF模拟光学发射器和接收器
系统简介
光纤无线电（RoF）是一种模拟传输方式，它使用射频信号对光进行调制，然后通过纤维进行传输。在接收端，射频能量被回收。光链路提供高带宽、低损耗的通信链路，以光频率传输射频能量，然后在负载点回收射频信号。无线通信和光纤通信是影响巨大的两项技术。连接这两种技术的是光纤射频（RF），也称为 RoF。RoF 技术已广泛应用于航空电子设备、分布式天线、蜂窝电话、卫星通信等领域。

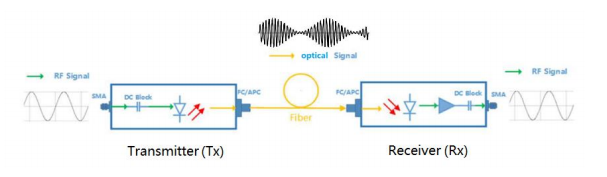

ROF原理图
应用
- WiFi6/7 and 4G / 5G/ 6G wireless
- GPS signal transport
- All-Digital QAM network
- CATV
- Distributed antenna system
- Satellite communications
- Fiber Delay line
技术支持：黄工 13427781756 (微信同号，可扫码）
WhatsApp：+8613427781756
Email: huangqianyuan@glgyzn.com
由于产品的规格型号参数太多，所以页面上没有您要找的参数，并不代表我们没有相应的产品；添加微信，直接问吧这样更高效！
Optical Transmitter (Tx)
| Picture | Series | Features | PN | Analog Bandwidth (GHz) | W/ or W/O LNA |
W/ or W/O TEC | Wavelength Range(1) (nm) | Operating Temperature (°C) | Link Gain（2）（dB）Typical | Ripple （dB）Typical | NF（dB）Typical | IIP3（dBm) Typical | SFDR （dB·Hz2/3) Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (L*W*H, mm): 77.9*18.3*8.5 Weight (g): 39.2 |
MT04 | XFP-RF Analog Optical Transmitter |
OM- TLXxxxNL- OT00 |
0.05-1.5 | W/ | W/O | CWDM,1270-1370、1550 | 0-+70 | 14, (Rx with LNA) | ±0.8 | 25@1GHz | 22@1GHz | 112@1GHz |
| OM- TSXxxxNL- OT00 |
0.05-3 | W/ | W/O | CWDM,1270-1370、1550 | 0-+70 | 14, (Rx with LNA) | ±1.2 | 25@1GHz | 22@1GHz | 112@1GHz | |||
| OM- TLXxxxNL- OT09 |
0.05-1.5 | W/ | W/O | CWDM,1270-1370、1550 | 0-+70 | 14, (Rx with LNA) | ±0.8 | 25@1GHz | 22@1GHz | 112@1GHz | |||
| OM- TSXxxxNL- OT09 |
0.05-3 | W/ | W/O | CWDM,1270-1370、1550 | 0-+70 | 14, (Rx with LNA) | ±1.2 | 25@1GHz | 22@1GHz | 112@1GHz | |||
| OM- TLXxxxNL- OT12 |
0.05-1.5 | W/ | W/O | CWDM,1270-1370、1550 | 0-+70 | 18, (Rx with LNA) | ±0.8 | 28@1GHz | 22@1GHz | 112@1GHz | |||
| OM- TSXxxxNL- OT12 |
0.05-3 | W/ | W/O | CWDM,1270-1370、1550 | 0-+70 | 18, (Rx with LNA) | ±1.2 | 28@1GHz | 22@1GHz | 112@1GHz | |||
| OM- TLXxxxNL- OTHL |
0.05-1.5 | W/ | W/O | 1550 | 0-+70 | 12, (Rx with LNA) | ±0.8 | 28@1GHz | 24@1GHz | 112@1GHz | |||
| OM- TSXxxxNL- OTHL |
0.05-3 | W/ | W/O | 1550 | 0-+70 | 12, (Rx with LNA) | ±1.2 | 28@1GHz | 24@1GHz | 112@1GHz |
| Picture | Series | Features | PN | Analog Bandwidth (GHz) | W/ or W/O LNA |
W/ or W/O TEC | Wavelength Range(1) (nm) | Operating Temperature (°C) | Link Gain（2）（dB）Typical | Ripple （dB）Typical | NF（dB）Typical | IIP3（dBm) Typical | SFDR （dB·Hz2/3) Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Size (L*W*H, mm): 31.3*17*10 Weight (g): 20 |
MT04 | S-Mini Analog Optical Transmitter | OM- TSCxxxNF- OS11 |
0.01-3 | W/ | W/O | CWDM:1270-1370,1530,1550 | -20-+70 | -3, (Rx without LNA)) | ±1.5@1310nm，±2.5@1550nm | 18@1.5GHz@1310nm, 20@1.5GHz@1550nm | 9@1.5GHz | 115@1.5GHz |
| OM- TSCxxxNF- OS10 |
0.01-3 | W/O | W/O | CWDM:1270-1370,1530,1550 | -20-+70 | -24, (Rx without LNA)) | ±1.5@1310nm，±2.5@1550nm | 32@1.5GHz@1310nm, 35@1.5GHz@1550nm | 33@1.5GHz | 115@1GHz | |||
| OM- TCCxxxNF- OS10 |
0.01-6 | W/O | W/O | CWDM:1270-1370,1530,1550 | -20-+70 | -26, (Rx without LNA)) | ±1.5@1310nm，±2.5@1550nm | 32@3GHz@1310nm, 38@3GHz@1550nm | 33@3GHz | 113@1GHz |
| Picture | Series | Features | PN | Analog Bandwidth (GHz) | W/ or W/O LNA |
W/ or W/O TEC | Wavelength Range(1) (nm) | Operating Temperature (°C) | Link Gain（2）（dB）Typical | Ripple （dB）Typical | NF（dB）Typical | IIP3（dBm) Typical | SFDR （dB·Hz2/3) Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Size (L*W*H, mm): 45*35*14.1 Weight (g): 58 |
MT07 | Coaxial Analog Optical Transmitter with TEC | OM- TSCxxxNF- OW00 |
0.01-3 | W/O | W/ | CWDM:1270-1370,1530,1550 | -40-+70 | -26 | ±1.2 | 33@1GHz，34@2GHz，35@3GHz，(1270nm-1370nm) | 34@1GHz, 33@2GHz, 33@3GHz | 117@1GHz，115@2GHz，115@3GHz，(1270nm-1370nm) |
| OM- TCCxxxNF- OW00 |
0.01-6 | W/O | W/ | CWDM:1270-1370,1530,1550 | -40-+70 | -26 | ±1.5 | 33@1GHz，35@3GHz，39@6GHz，(1270nm-1370nm) | 34@1GHz, 33@3GHz, 31@6GHz | 117@1GHz，115@3GHz，111@6GHz，(1270nm-1370nm) | |||
| OM- TXCxxxNF- OW00 |
0.01-12 | W/O | W/ | CWDM:1270-1370,1530,1550 | -40-+70 | -26 | ±2.0 | 33@1GHz，39@6GHz，41@12GHz，(1270nm-1370nm) | 34@1GHz, 31@6GHz, 28@12GHz | 117@1GHz，111@6GHz，107@12GHz，(1270nm-1370nm) | |||
| OM- TYCxxxNF- OW00 |
0.1-16 | W/O | W/ | CWDM:1270-1370,1530,1550 | -40-+70 | -26 | ±2.0 | 33@1GHz，37@10GHz，41@16GHz，(1270nm-1370nm) | 32@1GHz, 30@10GHz, 26@16GHz | 115@1GHz，111@10GHz，106@16GHz，(1270nm-1370nm) | |||
| OM- TUCxxxNF- OW00 |
0.1-18 | W/O | W/ | CWDM:1270-1370 | -40-+70 | -26 | ±2.5 | 35@1GHz，41@10GHz，43@18GHz | 34@1GHz, 32@10GHz, 27@18GHz | 115@1GHz，110@10GHz，105@18GHz | |||
| OM- TKCxxxNF- OW00 |
0.5-21 | W/O | W/ | CWDM:1270-1370 | -40-+70 | -26 | ±2.0 | 35@1GHz，41@10GHz，43@21GHz | 34@1GHz, 32@10GHz, 24@21GHz | 115@1GHz，110@10GHz，102@21GHz | |||
| OM- TSCxxCNF- OW00 |
0.01-3 | W/O | W/ | DWDM,ITU C-BAND | -40-+70 | -26 | ±1.5 | 35@1GHz，36@2GHz，37@3GHz | 38@1GHz, 33@2GHz, 27@3GHz | 118@1GHz，113@2GHz，105@3GHz | |||
| OM- TXCxxCNF- OW00 |
0.01-12 | W/O | W/ | DWDM,ITU C-BAND | -40-+70 | -26 | ±2.0 | 34@1GHz，41@6GHz，47@12GHz | 33@1GHz, 29@6GHz, 25@12GHz | 115@1GHz，108@6GHz，101@12GHz |
Optical Receiver (Rx)
| Picture | Series | Features | PN | Analog Bandwidth (GHz) | W/ or W/O LNA |
W/ or W/O TEC | Wavelength Range (nm) | Operating Temperature (°C) | Saturation input optical power（mW） | Responsivity（A/W）Typical | Back Reflection（dB） | Ripple of Passband（dB） | RF Return Loss（dB） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Size (L*W*H, mm): 31.3*17*10 Weight (g): 19 |
MR03 | S-Mini Analog Optical Receiver | OM-RSC000NF-OS11 | 0.01（5）-3 | W/ | W/O | 1100-1620 | -20-+70 | 10 | 0.8@1310, 0.85@1550 | ≤-35 | ≤±2 | ≤-8 |
| OM-RSC000NF-OS10 | 0.01（5）-3 | W/O | W/O | 1100-1620 | -20-+70 | 10 | 0.8@1310, 0.85@1550 | ≤-35 | ≤±2 | ≤-8 | |||
| OM-RCC000NF-OS11 | 0.01（5）-6 | W/ | W/O | 1100-1620 | -20-+70 | 10 | 0.8@1310, 0.85@1550 | ≤-35 | ≤±2.2 | ≤-7 | |||
| OM-RCC000NF-OS10 | 0.01（5）-6 | W/O | W/O | 1100-1620 | -20-+70 | 10 | 0.8@1310, 0.85@1550 | ≤-35 | ≤±2.2 | ≤-7 | |||
| OM-RXC000NF-OS10 | 0.01（5）-12 | W/O | W/O | 1100-1620 | -20-+70 | 10 | 0.8@1310, 0.85@1550 | ≤-35 | ≤±2.5 | ≤-5 | |||
 Size (L*W*H, mm): 22*17*8.9 Weight (g): 15 |
MR03 | Analog Optical Receiver | OM-RCC000NF-OW00 | 0.01（5）-6 | W/O | W/O | 1100-1620 | -40-+70 | 10 | 0.8@1310, 0.85@1550 | ≤-35 | ≤±1.2 | ≤-9 |
| OM-RXC000NF-OW00 | 0.01（5）-12 | W/O | W/O | 1100-1620 | -40-+70 | 10 | 0.8@1310, 0.85@1550 | ≤-35 | ≤±1.5 | ≤-7 | |||
| OM-RUC000NF-OW00 | 0.01（5）-18 | W/O | W/O | 1100-1620 | -40-+70 | 10 | 0.7@1310, 0.75@1550 | ≤-35 | ≤±2 | ≤-5 | |||
| OM-RKC000NF-OW00 | 0.01（5）-24 | W/O | W/O | 1100-1620 | -40-+70 | 10 | 0.7@1310, 0.75@1550 | ≤-35 | ≤±2.5 | ≤-5@≤18GHz，≤-3@18-24GHz | |||
 Size (L*W*H, mm): 100*90*28 Weight (g): TBD |
MR02 | 40GHz Analog Optical Receiver | OM-RVC000NF-OU00 | 0.1-40 | optional | W/O | 1100-1620 | -20-+50 | 20 | 0.7@1310, 0.75@1550 | ≤-35 | ≤±2 | ≤-9.5 |
