Integrated Module Of Distributed Fiber Optic Vibration Detection System
DVS integrated hardware module, based on which you can more quickly implement your own distributed vibration measurement system, you only need to match the DAQ, and then focus on the implementation of software!!
DvS integrated module integrates narrow linewidth fiber laser, AOM acousto-optic regulator, pulse EDFA, annularizer, Raman amplifier, high signal-to-noise ratio photoelectric conversion module, only need to be equipped with a high-speed data DAQ can form a set of DVS distributed vibration measurement system.
Specification
| Parameter | symbol | minimum | Typical values | maximum | unit |
|---|---|---|---|---|---|
| Pulse width | Pulse | 10 | 100 | ns | |
| Operating wavelength | ℷc | 1525 | 1550 | 1565 | nm |
| Measure distances | D | 40 | Km | ||
| Peak power | Pp | 30 | W | ||
| Long-term stability of output power | ∆p | 0.02 | dB | ||
| Detection wavelength range | Ds | 1100 | 1700 | nm | |
| Probe responsiveness | Dr | 10 | mv/nA | ||
| Line width | Lw | 3 | kHz | ||
| Wavelength stability | Ws | 1 | pm | ||
| Side-mode rejection ratio | SMSR | 50 | dB | ||
| Relative intensity noise | RIN | -135 | dB/Hz | ||
| Operating voltage | Wv | 4.5 | 5.5 | V | |
| power consumption | Ps | 15 | W | ||
| Operating temperature | Tw | -20 | 60 | C | |
| Storage temperature | Ts | -40 | 80 | °C | |
| External control interface | RS232 | ||||
| size | L*W*H | 202*171*30 | MM | ||
Vibration test video

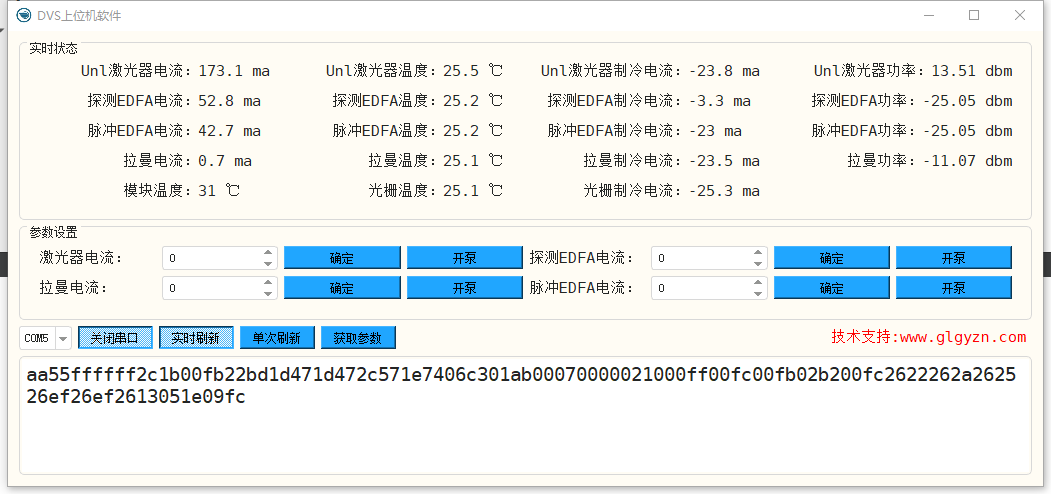

DVS module host computer software
DVS module host computer software，Download
DAQ use of DVS
DVS module host computer software，Download
Test the software since the DAQ driver, if there is no installation of the DAQ driver can not be used。
